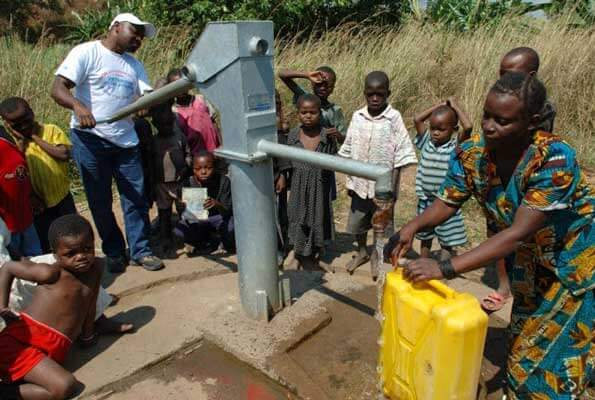

A conventional lever action hand pump with galvanised steel, cast iron and brass components. Modular construction – fabricated galvanised mild steel body and a direct action reciprocating cylinder. 63.5mm Ø cast iron brass sleeved cylinder assembly. Requires an area approximately 2m Ø for installation and is capable of manual pumping speeds up to 40 strokes per minute. Approximate discharge at 40 strokes per minute is around 900 litres per hour. The pump is suitable for 100mm – 150mm Ø bore wells and recommended for water level setting depth of 20-45m. This item is supplied in accordance with the following agency specifications:
