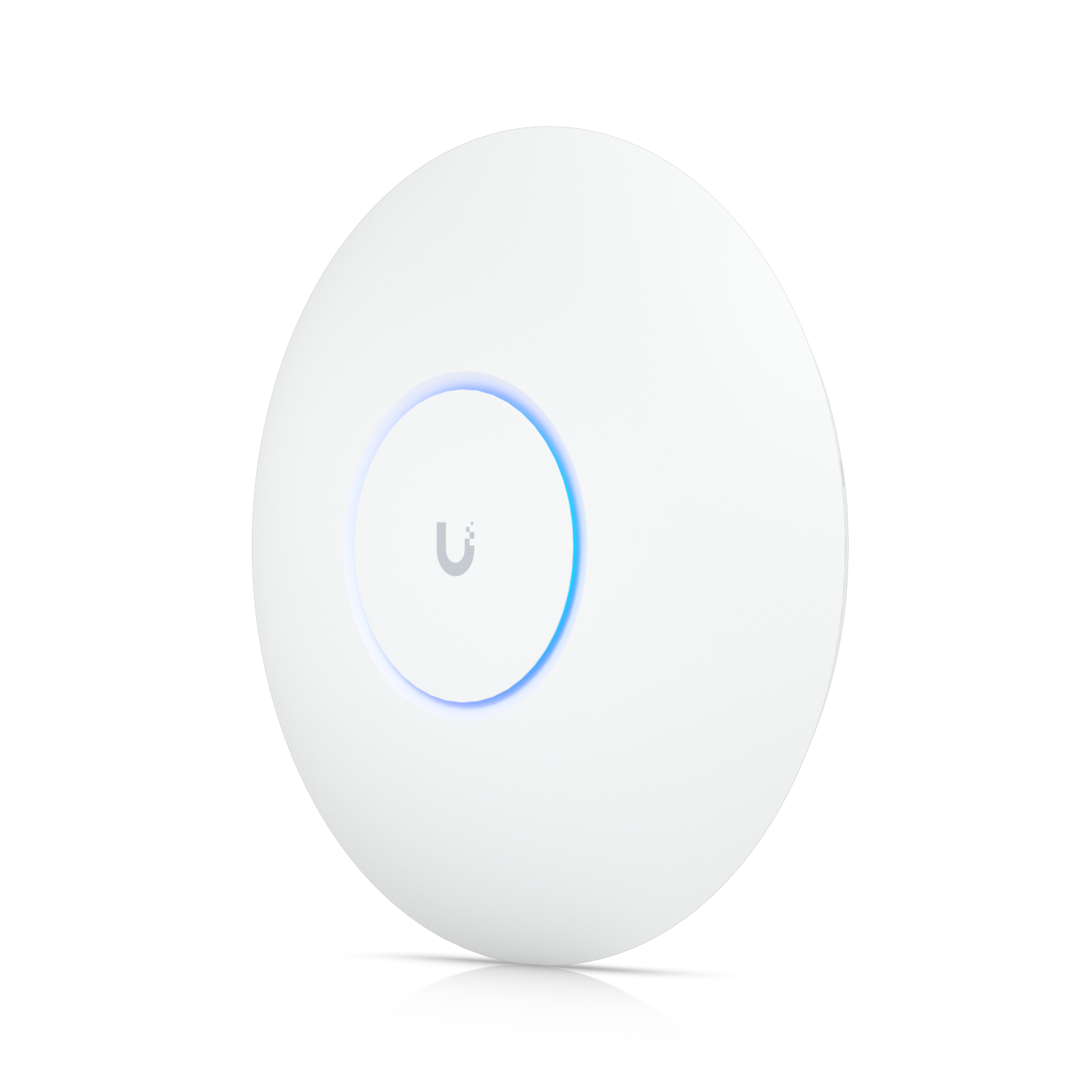

Ubiquiti UniFi U6-Pro Access Point WiFi 6 PRO Overview The Ubiquiti UniFi U6-Pro WiFi 6 PRO is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4×4 MIMO) and 2.4 GHz (2×2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4×4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application. Technical Specifications Mechanical Dimensions Ø197 x 35 mm (Ø7.8 x 1.4″) Weight Without mount: 580 g (1.3 lb) With mount: 720 g (1.6 lb) Enclosure material Polycarbonate Mount material Stainless steel (SUS304) Weatherproofing IP54 Hardware Networking interface (1) GbE RJ45 port Management interface Ethernet Bluetooth Power method PoE Power supply UniFi PoE switch PoE adapter (Not included) Supported voltage range 44—57V DC Max. power consumption 13W Max. TX power 2.4 GHz 5 GHz 6 GHz 22 dBm 26 dBm – MIMO 2.4 GHz 5 GHz 6 GHz 2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) – Throughput rate 2.4 GHz 5 GHz 6 GHz 573.5 Mbps (BW40) 4.8 Gbps (BW160) – Antenna gain 2.4 GHz 5 GHz 6 GHz 4 dBi 6 dBi – LEDs White/blue Button Factory reset Mounting Wall, ceiling (Included) Ambient operating temperature -30 to 60° C (-22 to 140° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Software WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6) Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 350 Zero wait DFS Yes* *Supported with upcoming firmware versions Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
