Pair of NL2079 synchronized electric table legs with radio control and rocker switch

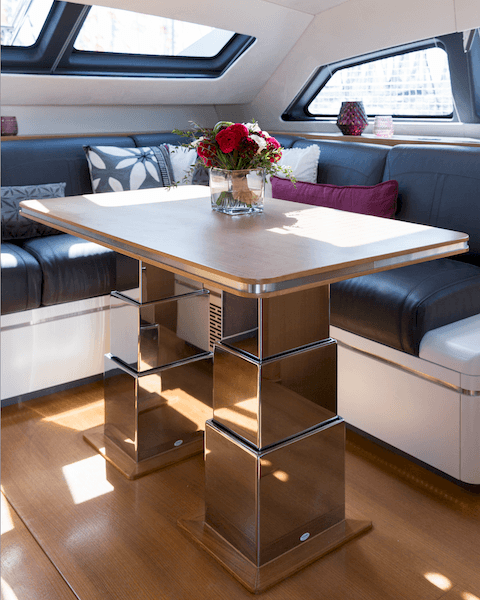

Description The NL2079-paired-remotecontrol-switch kit is a complete solution for motorizing and synchronizing the raising and lowering of two NL2079 electric table legs with an advanced control system. So you can turn your dining table into a coffee table, or an occasional bed or sun lounger. Designed for demanding marine and outdoor environments, this kit incorporates a radio remote control as well as a piloting switch for optimal and intuitive control. Kit composition 2x NL2079 – Electric table legs in mirror-polished 316 stainless steel 1x NL2120 – Synchronization box and radio receiver 1x AT5189 – 4-channel remote control 1x NL1494 – Rocker switch NL2079 table pedestals features Retracted height: 313 mm Deployed height: 637 mm Stroke: 324 mm Maximum load: 100 kg per foot (200 kg total) Lifting speed: 15 mm/s Power supply: 12VDC – 10A Material: Mirror-polished 316 stainless steel Use: Indoors / Outdoors Deck plate: 355 mm x 280 mm Top plate: 355 mm x 280 mm Weight: 35kg / system, i.e. 70kg for the 2-leg kit NL2120 synchronization box The NL2120 control box ensures perfect synchronization of the two table legs for uniform, precise movement. The legs can be controlled simultaneously via a radio remote control or a monostable wired button. Remote control AT5189 Number of channels: 4 Compatibility: NOVAL receivers (NL1270, NL2120, NL2410) Transmission frequency: Complies with HCS standards (also known as RED – Radio Equipment Directive) Battery: Included Protection rating: IP66 (suitable for humid and saline environments) Monostable button NL1494 The NL1494 button is a rocker flush-mounted switch for direct manual control of table legs. It is ideal for fast, intuitive use as a complement to the radio remote control. Installation and maintenance Installation: Fix the two NL2079 feet to the floor, after allowing for power cables. Connect the table legs to the NL2120 synchronization box. Connect the NL1494 toggle switch to the NL2120 box. Supply the system with 12VDC – 10A. Pair the AT5189 remote control to the radio receiver. Check that the pedestals work properly when unloaded. Install the tabletop after positioning the legs in the top position. Maintenance: Cleaning: rinse with fresh water after every sea outing. Lubrication: Apply silicone spray twice a year. Check: Check electrical connections and fastenings. Battery: Replace remote control battery if necessary. Advice & Guides How to install synchronized electric table pedestals on board – what to plan for Choosing your electric table pedestal – comparing our onboard systems Our review ✔ Pros Perfect synchronization of both feet Control via radio control or wired button Corrosion-resistant materials (mirror-polished 316 stainless steel) Simple installation and maintenance Smooth, quiet operation ✘ Cons Requires 12VDC power supply Remote control and switch require initial familiarization The complete kit weighs 70kg, requiring installation on relatively large boats. Conclusion The NL2079-paired-remote-switch kit is an ideal solution for those looking for a motorized, synchronized and easy-to-use table height adjustment system. Its double pedestal in mirror-polished 316 stainless steel guarantees perfect stability, while the combination of synchronizer box, radio remote control and rocker switch provides optimum control. Good to Know This kit is particularly suited to marine environments, guaranteeing enhanced durability and resistance to harsh conditions. Technical documentation can be downloaded as soon as your purchase has been confirmed. For the table top, we recommend fastening with countersunk holes and M6 stainless steel inserts. The drain on the bottom plate allows condensation water to drain away, particularly useful in outdoor environments. The table top is not supplied with this kit – however, we can propose and produce it specifically for your needs, in partnership with CASAMARE – average production time for a marine table top = 6 to 8 weeks – please contact us directly. English spoken On parle Français Call us: 33 6 33 30 44 50 Chat on WhatsApp Contact us by e-mail
