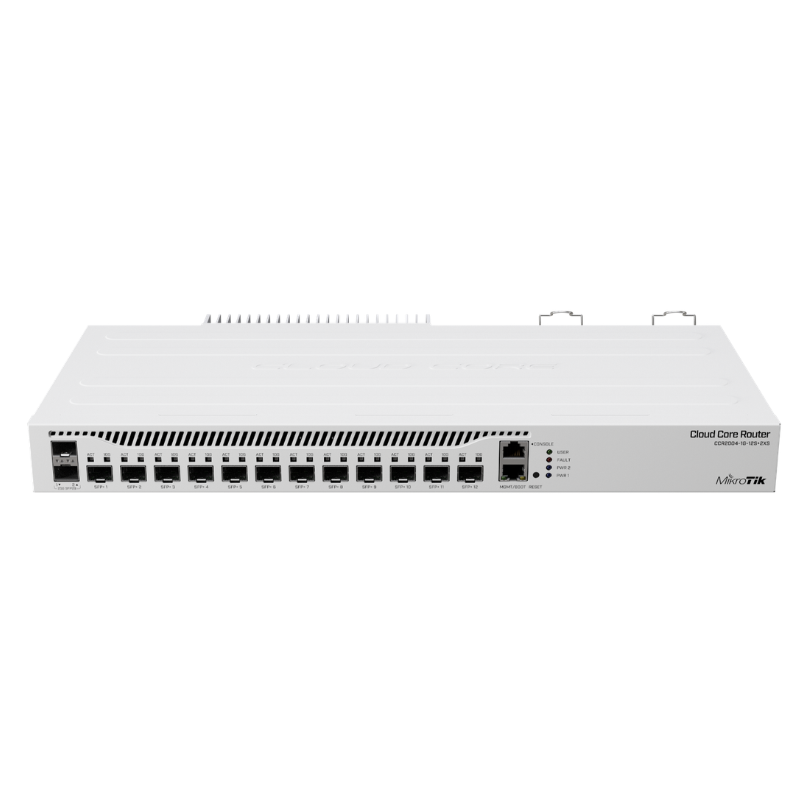

MikroTik CCR2004-1G-12S 2XS – High-Performance 100G Cloud Core Router Overview The MikroTik CCR2004-1G-12S 2XS is a powerful enterprise-grade Cloud Core Router designed for ISPs, data centers, and high-capacity network infrastructures. Built with the advanced Annapurna Labs AL32400 quad-core ARM 64-bit processor, this router delivers exceptional performance for demanding networking environments. Featuring 12 SFP 10 Gbps ports and 2 QSFP28 100 Gbps ports, the CCR2004-1G-12S 2XS provides ultra-high bandwidth connectivity, making it ideal for core routing, high-speed aggregation, and data center networking. With MikroTik RouterOS, administrators gain access to powerful routing, firewall, VPN, and traffic management features, enabling flexible network control and scalability. Key Features Ultra-High-Speed 100G Networking The CCR2004-1G-12S 2XS supports extreme network throughput with multiple high-speed interfaces: 2 × 100 Gbps QSFP28 ports 12 × 10 Gbps SFP ports 1 × Gigabit Ethernet management port This makes it perfect for data centers, ISP backbones, and high-capacity enterprise networks. Powerful Quad-Core ARM CPU At the heart of the router is the Annapurna Labs AL32400 CPU, delivering high routing performance and stability. Key processor specifications: 4 cores 1.7 GHz CPU frequency Optimized for high packet processing This ensures smooth operation even under heavy network traffic loads. Large Memory for Intensive Networking Tasks The router includes 4 GB of RAM, enabling it to handle large routing tables, VPN tunnels, and advanced network configurations efficiently. Benefits include: Better performance for complex routing Improved stability under heavy loads Ideal for carrier-grade deployments RouterOS Advanced Networking Features Running MikroTik RouterOS (Level 6 license), the CCR2004 supports extensive networking capabilities including: Advanced routing protocols (BGP, OSPF, RIP) Firewall and security features VLAN and QoS management VPN support (IPSec, OpenVPN, L2TP) Bandwidth management Traffic monitoring and analytics Redundant Power for Reliability The router includes dual hot-swappable power supplies, ensuring continuous operation even if one power module fails. Advantages: Increased network reliability Ideal for critical infrastructure Reduced downtime Data Center-Ready Design The 1U rackmount chassis is designed for professional networking environments such as data centers and telecom installations. Features include: Efficient cooling system Durable metal enclosure Optimized airflow for rack deployments Technical Specifications Model: CCR2004-1G-12S 2XSProduct Family: MikroTik Cloud Core Router Processor CPU: Annapurna Labs AL32400 Cores: 4 CPU Frequency: 1.7 GHz Memory RAM: 4 GB Storage: 128 MB NAND Networking Interfaces 2 × QSFP28 100 Gbps ports 12 × SFP 10 Gbps ports 1 × Gigabit Ethernet port Operating System MikroTik RouterOS (Level 6) Power Dual hot-swappable power supplies Cooling Active cooling system Form Factor 1U rackmount Operating Temperature -20°C to 60°C Ideal Use Cases The MikroTik CCR2004-1G-12S 2XS is perfect for: Internet Service Provider (ISP) core networks Data center routing High-speed network aggregation Enterprise backbone networks Fiber network infrastructure
