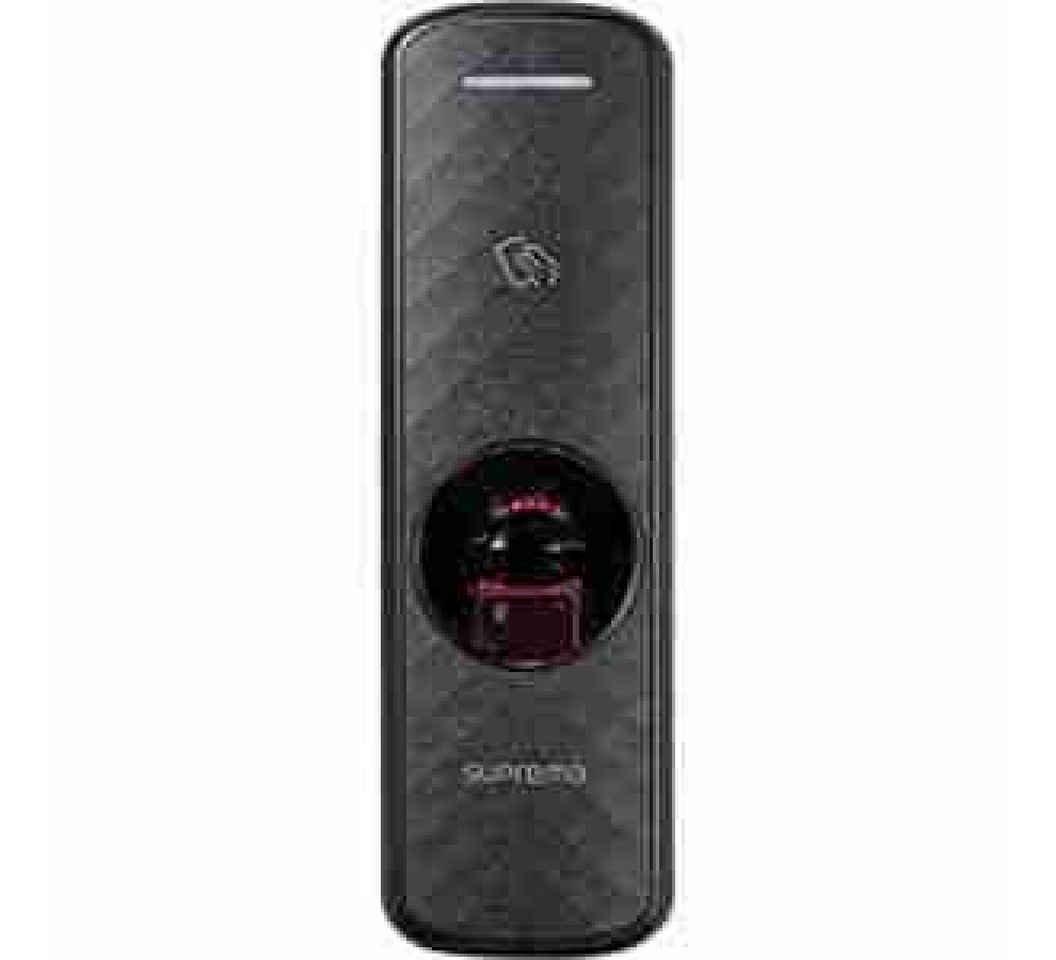

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD The Suprema BioEntry R2 (Model: BER2-OD) is a compact fingerprint and RFID card reader designed for centralized access control systems. Its slim, mullion-type design allows for seamless integration into various environments. Below are the detailed specifications: Biometric Features: Fingerprint Sensor: Optical Sensor (OP6) Template Extraction/Matching: Compliant with SUPREMA / ISO 19794-2 / ANSI 378 standards RFID Capabilities: Supported Frequencies: Dual-band support for 125kHz (low frequency) and 13.56MHz (high frequency) Card Compatibility: EM, MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa, NFC Read Range: MIFARE/DESFire: Up to 50 mm EM/FeliCa: Up to 30 mm Performance: Processor: 1.0 GHz CPU Memory: 32MB Flash 32MB RAM User Interface: LED Indicator: Multi-color Sound: Multi-tone buzzer Communication: RS-485: 1 channel (Slave), supports OSDP V2.1.6 Security: Tamper Detection: Supported Power and Environmental Specifications: Power Supply: DC 12V Operating Temperature: -20°C to 50°C Operating Humidity: 0% to 80%, non-condensing Physical Dimensions: Size: 50 mm (W) x 164 mm (H) x 37.5 mm (D) Weight: 158g Certifications: CE, FCC, KC, RoHS, REACH, WEEE These specifications highlight the BioEntry R2’s advanced biometric technology, versatile RFID compatibility, and robust design, making it a suitable choice for secure access control applications.
