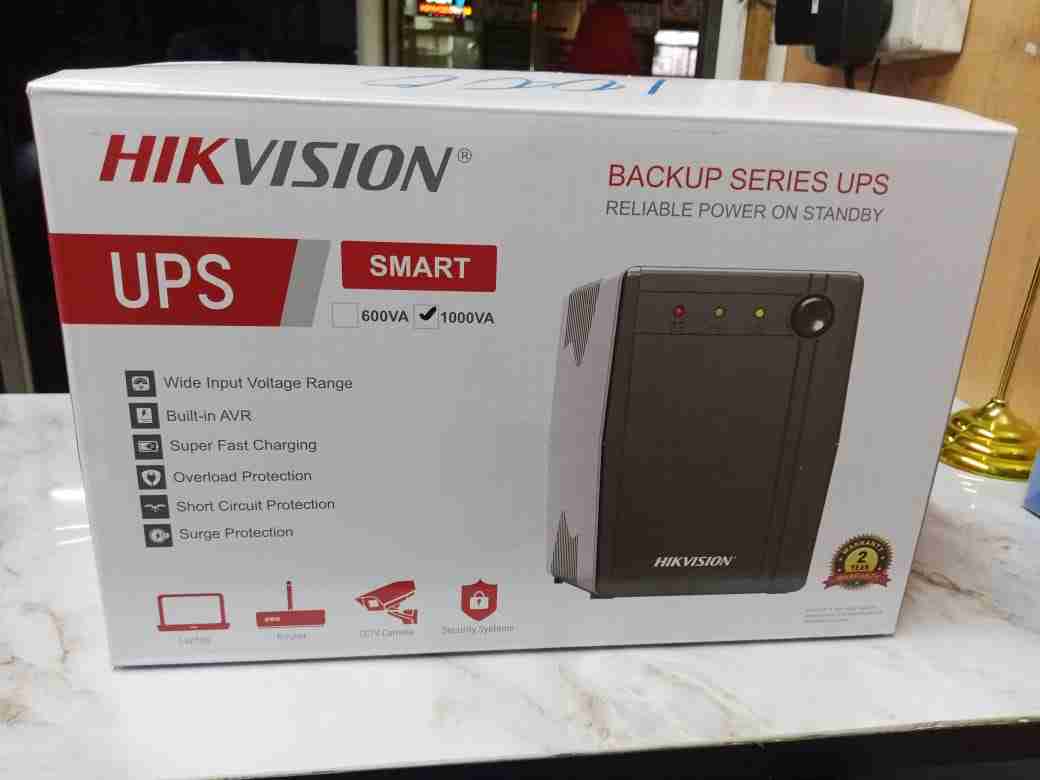

The Hikvision – DS-UPS1000 UPS is a 1000VA/600W uninterruptible power supply (UPS) designed to provide reliable backup power and protect electronic devices from power disturbances.Key Features of Hikvision Ups Smart 1000vaAutomatic Voltage Regulation (AVR): Stabilizes the output voltage to protect connected equipment from voltage fluctuations.Fast Charging: Recharges to 90% capacity within 4-6 hours, ensuring readiness for the next power outage.Comprehensive Protection: Offers overload, short circuit, and surge protection to safeguard connected devices.Technical Specifications of Hikvision Ups Smart 1000vaCapacity: 1000 VA / 600 WInput Voltage Range: 140 VAC to 290 VACOutput Voltage Range: 210 VAC to 235 VACTransfer Time: ≤ 10 msBattery Type: 12 V/9 Ah lead-acid batteryRecharge Time: 4-6 hours to 90% capacityTypical Backup Time:60W load: 60 minutes150W load: 15 minutes300W load: 2 minutesDimensions: 274 mm × 95 mm × 139 mmWeight: Approximately 5.4 kgModelDS-UPS1000PowerUPS Capacity1000 VA / 600 W InputInput VoltageRange140 VAC to 290 VACInputFrequency50/60 Hz OutputOutputVoltage Range210 VAC to 235 VACOutputFrequency50 Hz ± 0.5 HzTransfer Time≤ 10 msWaveformPWMBatteryBattery Type12 V/9 AhRecharge Time4-6 hours recover to 90% capacity Indicator DisplayLED indicatorWorking Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid redOverloading Mode: Flashing yellow AlarmCharging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every secondOverloading Mode: Sounding every 0.5 secondsFault: Continuously soundingInterfaceCommunicatePortsNoProtectionFull ProtectionSurge protection, Overload protection, Short circuit protection GeneralOperatingTemperature0 °C to 40 °C (32 °F to 104 °F）OperatingHumidity30% to 90% (non-condensing)Dimension274 mm × 95 mm × 139 mm (10.79″ × 3.74″ × 5.47″)WeightApprox. 5.4 kg (11.9 lb)
