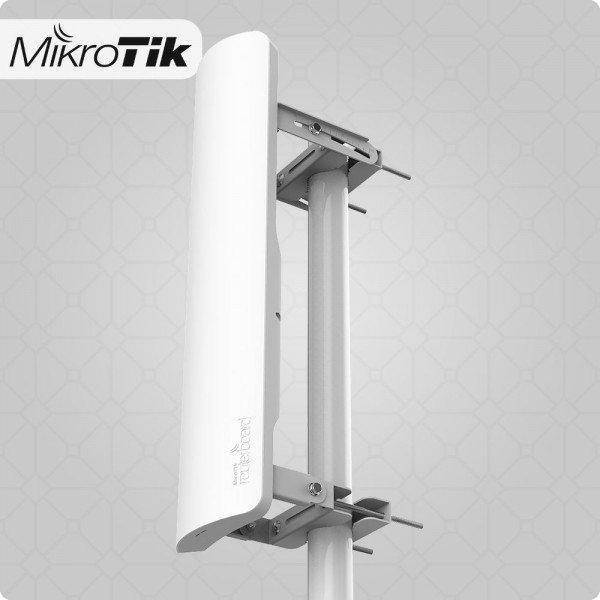

Description The Mikrotik Mantbox 19S RB921GS-5HPacD-19S is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power. mANTBox 19s comes with 19dBi 120 degree sector antenna. We have two versions available – RB921GS-5HPacD-19S (International) and RB921GS-5HPacD-19S-US (USA). RB921GS-5HPacD-19S-US (USA) is factory locked for 5.17 – 5.25 GHz and 5.725 – 5.835 GHz frequencies. This lock can not be removed. RB921GS-5HPacD-19S (International) supports 5.17 – 5.835 GHz range (Specific frequency range can be limited by country regulations). PRODUCT SPECIFICATION OF Mikrotik Mantbox 19S RB921GS-5HPacD-19S Product code RB921GS-5HPacD-19S Beamwidth 120 deg (azimuth) 5 deg (elevation) Connector two RP-SMA Cross Polarization >30 dB Diameter x Depth 152 x 598 x 78 mm Frequency Range 5.17 – 5.825 GHz Front-to-Back Ratio >30 dB Polarization Vertical and horizontal Port to Port Isolation >40 dB min VSWR 1.43 typ, 1.8 max Weight 1270 g Specifications Details Product code RB921GS-5HPacD-19S Architecture MIPSBE CPU QCA9557 CPU core count 1 CPU nominal frequency 720 MHz Dimensions 152 x 598 x 78 mm RouterOS license 4 Operating System RouterOS Size of RAM 128 MB Storage size 128 MB Storage type NAND MTBF Approximately 200’000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $199.00 Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 8-30 V Max power consumption 13 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 12-28 V Wireless specifications Details Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 19 Wireless 5 GHz chip model QCA9892 Wireless 5 GHz generation Wi-Fi 5 Ethernet Details 10/100/1000 Ethernet ports 1 Fiber Details SFP ports 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 31 -96 54MBit/s 27 -81 MCS0 30 -96 MCS7 27 -77 MCS9 22 -72 QUICK LINKS TO SIMILAR ITEMS BY JUMLA BEI LIMITED Huawei B593 Router with Simcard slot Ubiquiti AMO-2G15-120 2.4GHz 15dBi airMAX Sector 450Mbps Wireless Router TL-WR941HP High Power Consider buying yours from the best dealers in Nairobi town and have it delivered to you within the same day of order. We deliver nationwide and at the best Price. We guarantee quality and efficiency. We are located in Moi Avenue, Digital shopping mall, opposite MKU Towers, 1st floor, shop M17, JUMLA BEI LTD Luthuli avenue, Munyu road, Munyu business centre, 2nd floor, shop C10, KWA MOSHAA/START UP TECH
