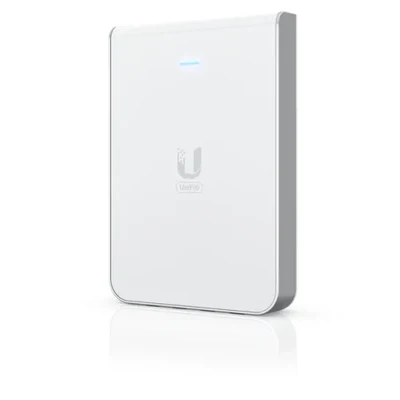

Ubiquiti UniFi 6 In-wall access point (U6-IW)

Specifications for the Ubiquiti UniFi 6 In-Wall Access Point (U6-IW) Mechanical Specifications Dimensions: 139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3″) Weight: 460 g (1 lb) Enclosure Material: Plastic, Aluminum Mount Material: Aluminum Hardware Features Networking Interfaces Data-In: (1) GbE RJ45 Port Data-Out: (4) GbE RJ45 Ports Management Interfaces Ethernet Bluetooth Power over Ethernet (PoE) Input: (1) PoE in (PoE output not used) Output: (1) PoE out (Requires PoE switch) Power Specifications Method: PoE / PoE Supply: UniFi PoE switch or 48V, 0.5A PoE adapter (Optional) Max. Power Consumption: 13W (Excluding PoE output) Voltage Range (PoE): 44–57V DC Max PoE Wattage per Port (PSE): 15.4W (Requires PoE switch) Performance Specifications Maximum Transmit Power 2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: Not supported MIMO Capabilities 2.4 GHz: 2×2 DL/UL MU-MIMO 5 GHz: 4×4 DL/UL MU-MIMO 6 GHz: Not supported Maximum Data Rates 2.4 GHz: 573.5 Mbps (BW40) 5 GHz: 4.8 Gbps (BW160) 6 GHz: Not supported Antenna Gain 2.4 GHz: 5 dBi 5 GHz: 5.9 dBi 6 GHz: Not supported Environmental Specs Operating Temperature: -30 to 60°C (-22 to 140°F) Operating Humidity: 5–95% non-condensing Certifications CE, FCC, IC Software Features WiFi Standards 802.11a/b/g/n/ac/ax (WiFi 6) Wireless Security WPA-PSK WPA-Enterprise (WPA/WPA2/WPA3) Additional Features BSSID: Up to 8 per radio VLAN Support: 802.1Q Advanced QoS: Per-user rate limiting Guest Traffic Isolation: Supported Concurrent Clients: 300 Zero-Wait DFS: Yes (Requires upcoming firmware updates) Supported Data Rates 802.11a/b/g 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9, NSS 1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11, NSS 1/2/3/4, HE 20/40/80/160) Application Requirements UniFi Network Version: 6.4.52 and later
