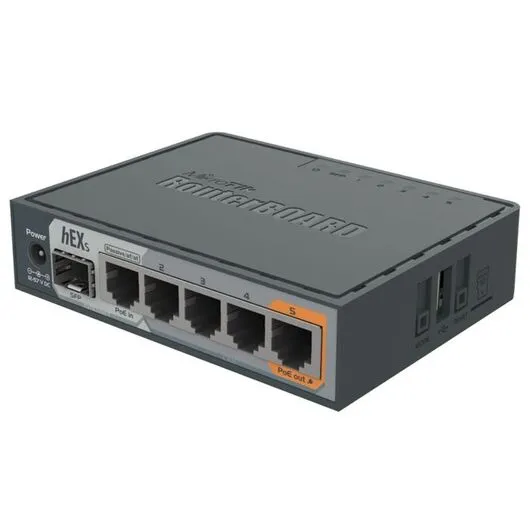

Mikrotik RB760iGS hEX S 5x Gigabit Ethernet SFP Dual Core 880MHz CPU

Mikrotik RB760iGS hEX S 5x Gigabit Ethernet SFP Dual Core 880MHz CPU hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port. It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude. Specifications Details Product code RB760iGS Architecture MMIPS CPU MT7621A CPU core count 2 CPU nominal frequency 880 MHz CPU Threads count 4 Dimensions 113 x 89 x 28 mm RouterOS license 4 Operating System RouterOS Size of RAM 256 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100’000 hours at 25C Tested ambient temperature -40°C to 70°C IPsec hardware acceleration Yes Suggested price $79.00 Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-57 V Max power consumption 24 W Max power consumption without attachments 6 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 12-57 V PoE-out Details PoE-out ports Ether5 PoE out Passive PoE up to 57V Max out per port output (input 18-30 V) 500 mA Max out per port output (input 30-57 V) 500 mA Max total out (A) 500 mA Ethernet Details 10/100/1000 Ethernet ports 5 Fiber Details SFP ports 1 Peripherals Details Memory card type microSD Memory Cards 1 Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Mode button Yes Beeper Yes Certification & Approvals Details Certification CE, EAC, ROHS IP IP20
